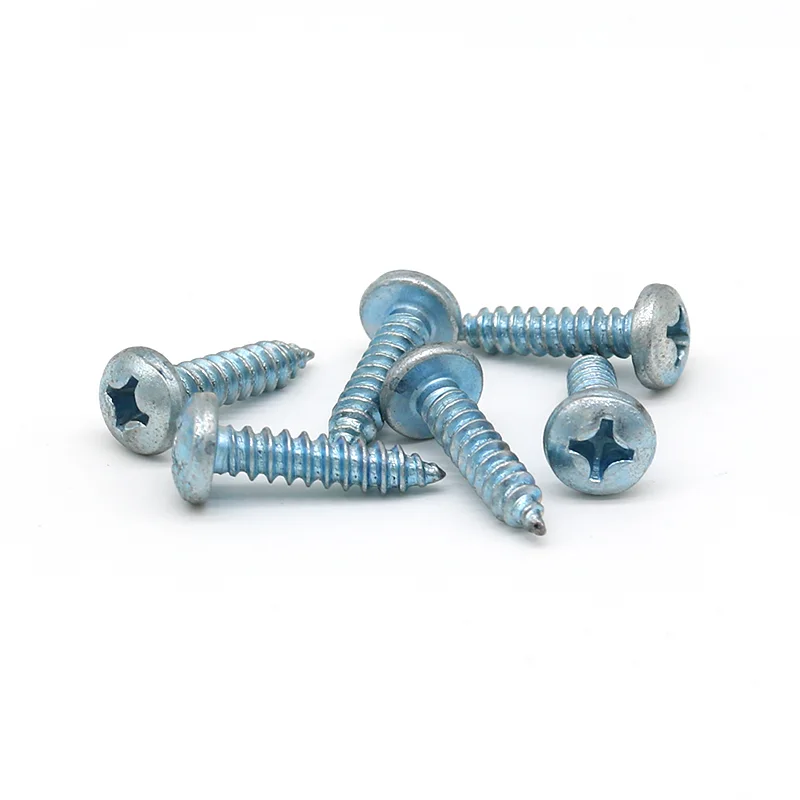

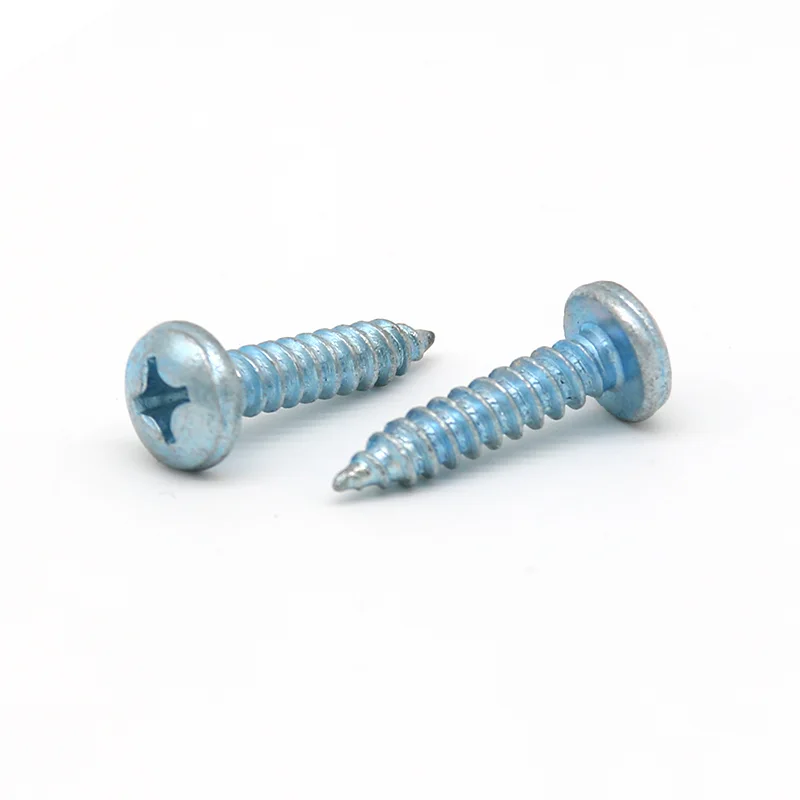

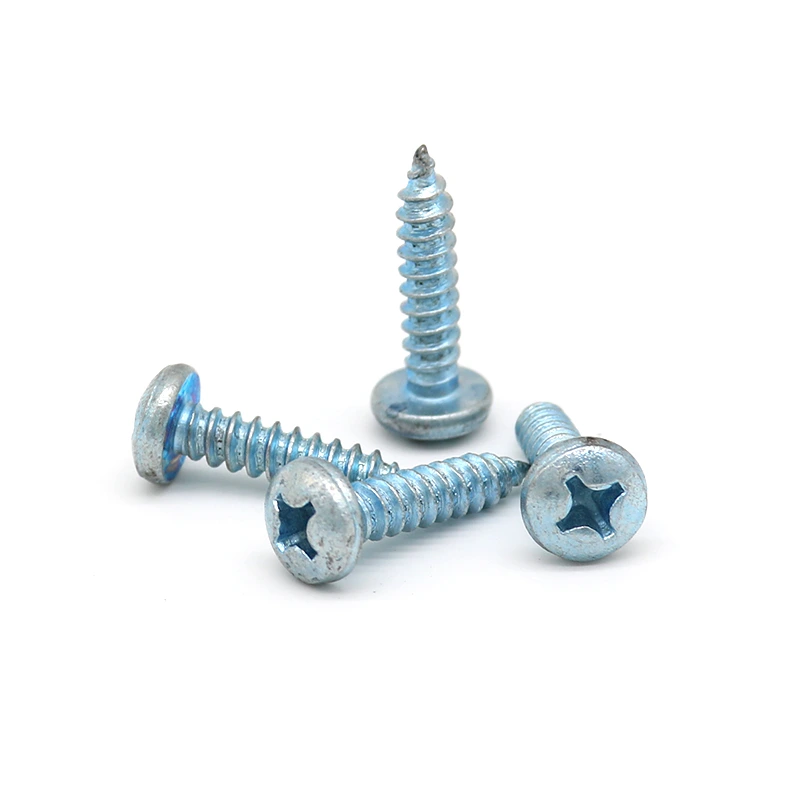

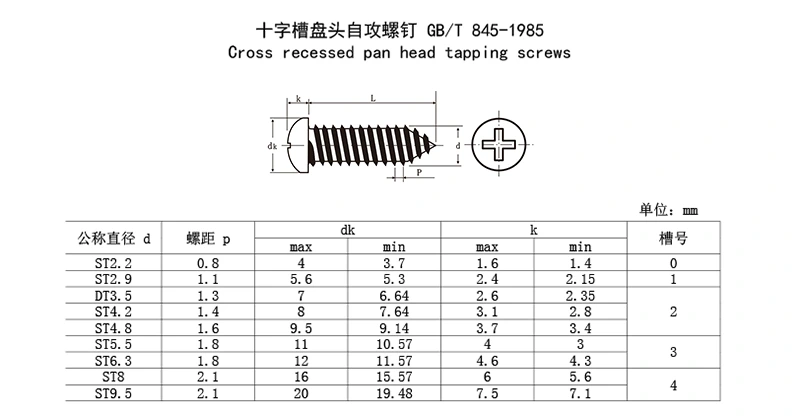

Phillips Pan Head Self-Tapping Screw (Chinese National Standard GB/T845-1985)

1. Applicable fields and Chinese national standard basis

This product is produced in strict compliance with GB/T845-1985 Chinese national standard. It has an arc pan head and Phillips recess structure. It mainly assembles plastic parts, density boards, solid wood, boards, home appliance plastic casings, and small hardware. The bottom hole needs to be pre-made in advance before use, and the full-thread thread is used for screwing and locking. It is widely used in the assembly of small household appliances, toys, furniture interiors, and electrical accessories. It is exported to the building materials markets in Southeast Asia, the Middle East, and Africa in batches all year round.

2. Raw materials and production processes

High-quality carbon steel is selected, and the production process includes nine processes: raw material rough drawing-annealing, phosphating, fine drawing, cold heading forming, screw thread rolling, heat treatment modulation, zinc plating, and packaging. The pan head has a rounded arc and will not bulge and scratch the paint surface of the workpiece after assembly; the thread profile is fine and sharp, and it is not easy to crack when screwed into wood or plastic; the blue-white zinc plated coating is uniform and dense, isolating water vapor and oxidation, and is durable in normal indoor humid environments.

3. Product core advantages

The rounded pan head does not damage the workpiece: the spherical pan head sinks into the assembly hole, the surface is smooth and burr-free, and the coating will not be scratched when plastic and painted parts are assembled.

Universal adaptability to multiple base materials: can fasten solid wood, density board, PVC plastic, ABS plastic, and can be used in multiple scenes of furniture and electrical appliances.

Flexible options for multiple coatings: the standard blue-white zinc plated is cost-effective and can be used indoors; the color zinc plated is resistant to salt spray and can be used in semi-open-air environments; the black oxide version is low-cost and can be assembled concealed inside the equipment.

4. Quality control warehousing and supporting services

All Chinese national standard specifications are in stock. Regular orders are dispatched within 48 hours. Small-batch samples and full-container export orders can be accepted. Before leaving the factory, the pan head size, Phillips recess strength, thread sharpness, and coating adhesion are randomly inspected according to Chinese national standards, and defective products with chipped grooves and incomplete tooth patterns are removed. It can be used with pan head drill point and various self-tapping screw complete sets of shipments; it supports customized nonstandard lengthened specifications for incoming samples, and stable production capacity and long-term supply.
