U-bolt ( / U-bolt, M10/M12/M16/M20/M24 multiple specifications)

1. Product application and selection criteria

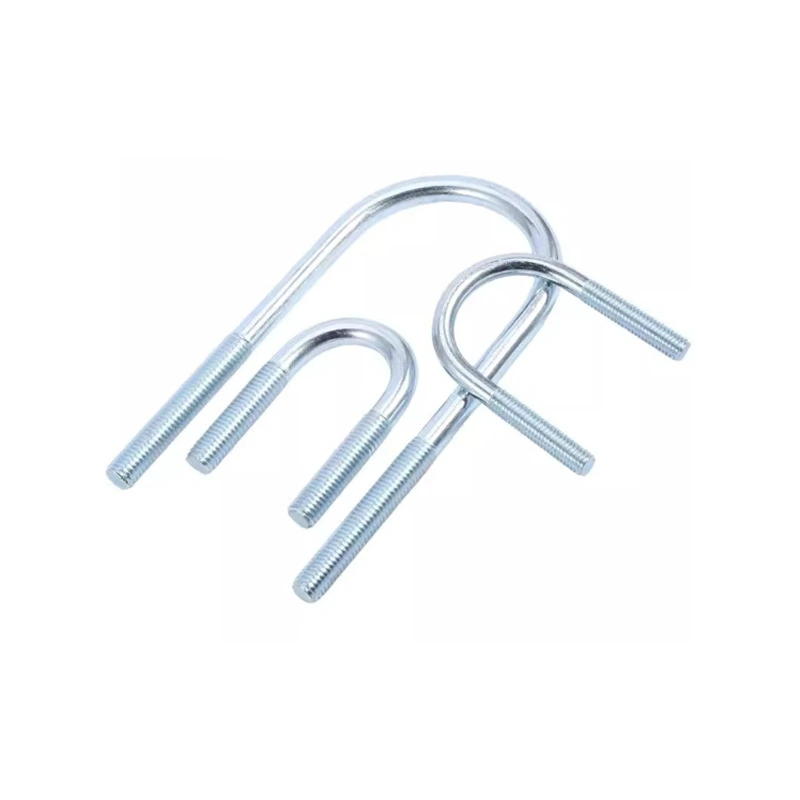

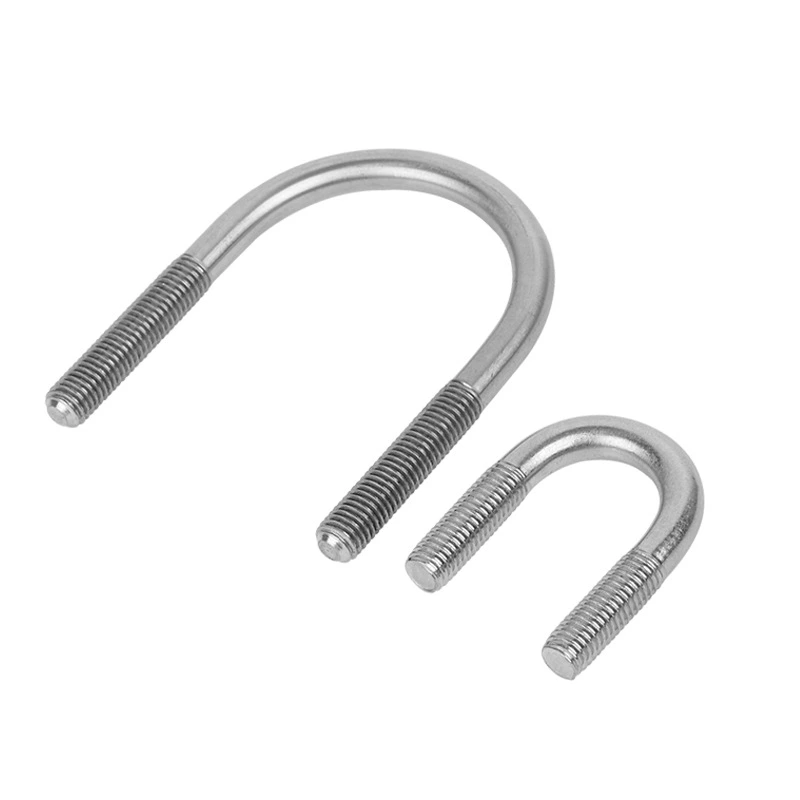

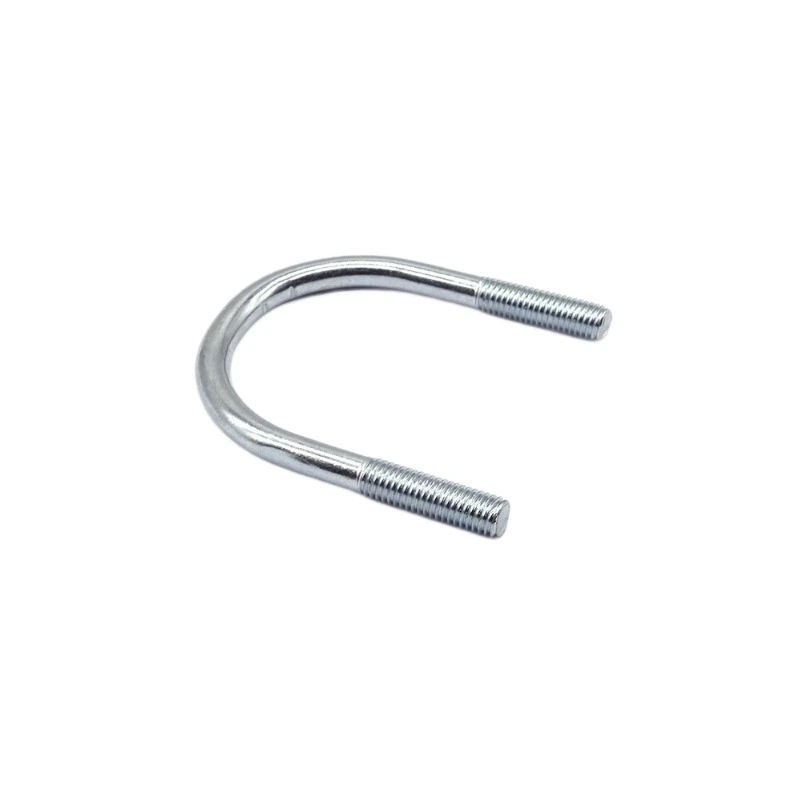

This product is a U-shaped fastening bolt, produced according to industry standard drawings. It is a special fastener for pipe fixing, steel structures, photovoltaic brackets, engineering machinery, plumbing pipelines, and bridge guardrail installation. It relies on the U-shaped surrounding structure to lock round pipes. It has been exported to overseas infrastructure markets such as the Middle East, Southeast Asia, and Africa for a long time. The products are selected according to the outer diameter of the suitable steel pipe, covering the full size range from 25mm thin pipelines to 139.7mm thick pipelines, and are widely used for limit fixation of oil and gas pipelines, water supply and drainage pipelines, and electromechanical equipment pipelines.

2. Raw materials and production processes

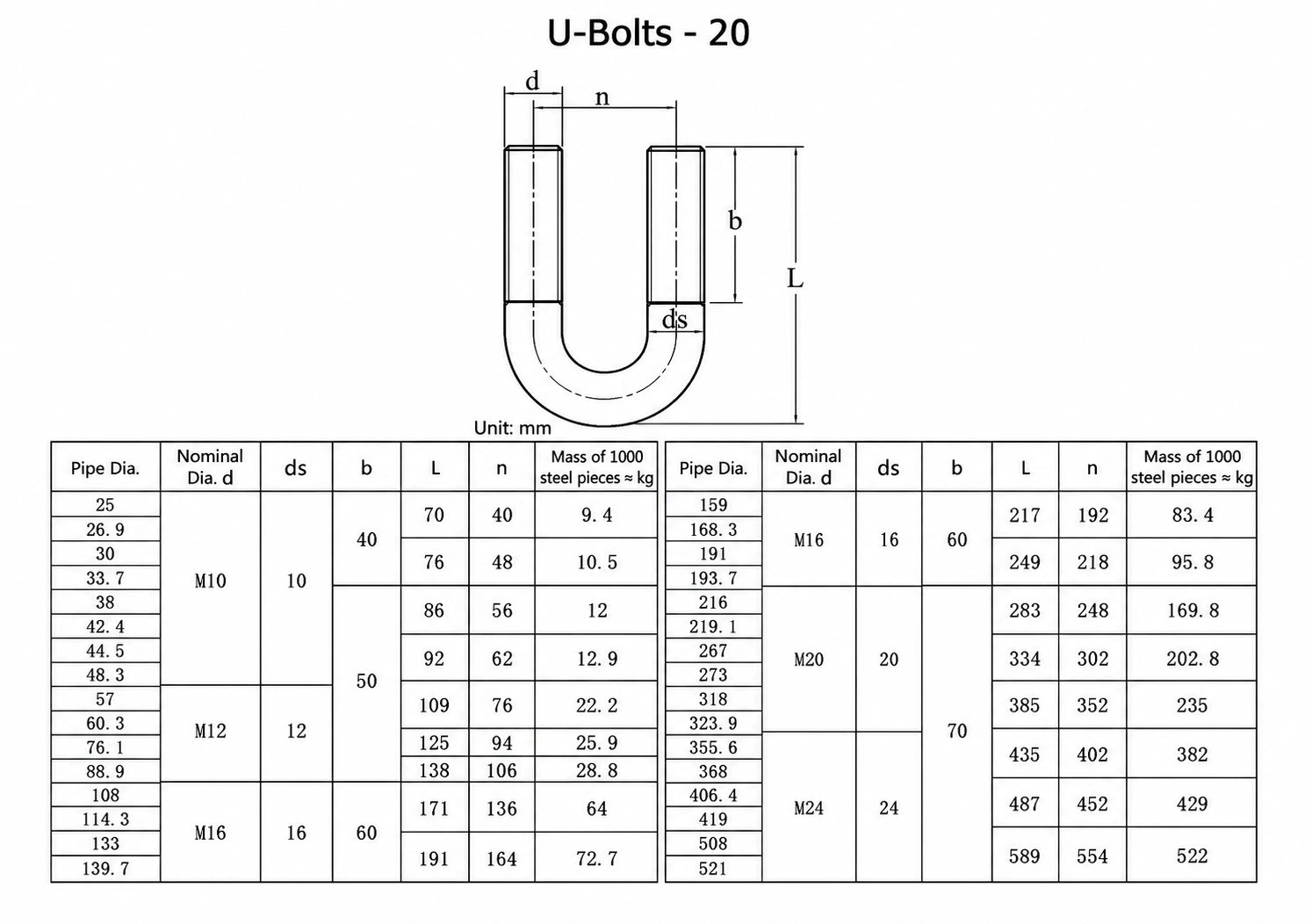

The raw materials are Q235 and 35K high-quality carbon steel, and grade 4.8 and grade 8.8 materials are optional. Production process: round steel cutting → bending and forming → thread rollingtapping → surface anti-corrosion treatment. The U-shaped bend is formed in one piece by cold bending. There is no cracking or stress deformation during bending, and the surrounding force is even. The threads at both ends are full and smooth, and they engage tightly with the matching nuts. The locking is not easy to slip and chip. The dimensions are strictly based on the bending distance, rod length, and hole diameter parameters in the drawing to ensure a tight fit with the corresponding steel pipe.

3. Surface treatment and product advantages

In stock is divided into two types of surface technology: the natural black oxide version is cost-effective and suitable for fixing indoor equipment and factory pipelines; the hot-dip galvanized version has a thick and dense zinc layer and is resistant to seaside salt spray and outdoor acid rain corrosion. It has long-term rust resistance in the open air environment and is suitable for photovoltaics, roads and bridges, and outdoor pipeline projects. Compared with buckle fittings, the U-shaped embracing structure has stronger pressure-bearing and seismic resistance, is easy to install, and does not require additional welding and fixation. In addition to the in stock standard specifications, the special-shaped curvature and screw length can be customized according to the customer's steel pipe outer diameter, installation space.

4. Quality control warehousing and supporting services

M10~M24 mainstream specifications are always in stock. Regular sizes can be ordered and shipped within 48 hours. Small samples and full-container export orders can be accepted. The bending dimensions, thread accuracy, and coating adhesion are randomly inspected before leaving the factory, and defective products with deformation and incomplete threads are eliminated. It can be supplied as a complete set of self-produced nuts, flat washers and spring washers, providing one-stop fastening accessories; relying on mature production lines and customized nonstandard special-shaped U-shaped bolts on demand, stable production capacity ensures long-term order renewal for overseas projects.
