A button head fastener gives an assembly a low, rounded head with a smoother appearance than a hex head and more visible bearing area than a countersunk screw. Buyers usually consider it when the head will remain exposed, the part should not snag easily, or a flush countersunk seat is not practical.
The main decision is not only the head style. You need to match the button head form with the drive type, thread, material, coating, mating part and installation access, because these choices affect tightening, corrosion resistance and how clean the finished assembly looks.
Brand: Hengzuan Surface: high temperature black phosphated anti-rust treatment, blue zinc, color zinc plated coating can be replaced as needed Specifications: in stock ST3.5/ST4.2/ST4.8 common specifications, rod length 16mm~50mm, complete, supports nonstandard size customization, suitable for drilling steel sheets 2~5mm Packaging: 25kg cartons, whole wooden pallets, support neutral packaging, private-label customization
Read More
Brand: Hengzuan Surface: Color zinc plated, optional blue-white zinc plated, black oxide treatment Specifications: Chinese national standard ST4.2/ST4.8/ST5.5 specifications, rod length 13~50mm in stock, supports nonstandard length customization Packaging: 25kg export cartons, full wooden pallets wrapped with film, supports neutral packaging, private-label customization
Read More
Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: Comply with GB/T15856.2-2002 Chinese national standard, in stock ST4.2/ST4.8/ST5.5 full range of specifications, length 13mm~75mm optional, supports customized nonstandard rod lengths; drilling adaptation plate thickness 0.7~6mm Packaging: 25kg export cartons, full pallets wrapped with film, supports neutral export packaging, customer private-label customization
Read More
Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: in stock 3.5/3.9/4.2/4.8/5.5 mainstream wire diameter, rod length 13mm~75mm full size range, nonstandard length can be customized as needed Packaging: 25kg export cartons, full wooden pallets wrapped with film, supports neutral export packaging, private-label customization
Read More
Brand: Hengzuan Surface: color zinc plated, customized blue-white zinc plated, black oxide Specifications: in stock 3.9/4.2/4.8/5.5 full diameter, length 13mm~75mm full size range, supports customized nonstandard rod lengths Packaging: 25kg export cartons, full pallets wrapped with film, supports neutral export packaging, customer private-label customization
Read More
Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: Comply with GB/T15856.2 Chinese national standard, in stock ST3.5/ST4.2/ST4.8/ST5.5 mainstream wire diameter, rod length 13mm~50mm full range of specifications, nonstandard length customization on demand, drilling applicable plate thickness 2~5mm Packaging: 25kg export cartons, full pallets wrapped with film, supports neutral export packaging, private-label customization
Read MoreSelection criteria
Useful button head selection starts with the fastener’s role in the assembly: visible finish, clearance, drive access, thread engagement and environment. Compare options by head profile, drive type, thread form, material and coating before treating two fasteners with the same diameter and length as interchangeable.
| Criterion | What To Check | Why It Matters | Buyer Tip |
|---|---|---|---|
| Head profile and bearing area | Compare the button head diameter and height against the clearance around the assembled part. | A button head gives a rounded, low-profile finish, but the larger head can interfere with nearby edges, covers, or moving parts. | Ask: What maximum head height and head diameter can the assembly accept? |
| Drive style compatibility | Confirm whether the button head uses hex socket, Torx, Phillips, or another drive, and match it to your installation tools. | The drive affects torque transfer, tool access, and the risk of cam-out or recess damage during assembly. | Ask: Which drive type is required for the assembly line or field installation tools? |
| Thread type and mating material | Specify machine thread, self-tapping thread, self-drilling form, or wood/fiberboard thread based on the material being fastened. | The wrong thread can strip the hole, reduce clamp force, or require extra drilling and tapping steps. | Ask: What material will the screw enter, and is there a pre-tapped hole, pilot hole, or no hole? |
| Material and surface finish | Confirm base material and coating, such as carbon steel, stainless steel, zinc plating, black finish, or other specified treatment. | Material and finish influence corrosion resistance, appearance, magnetic properties, and suitability for indoor or outdoor use. | Ask: Will the button head fastener be exposed to moisture, chemicals, or visible decorative surfaces? |
| Length, thread engagement, and clamp stack | Calculate the grip thickness, washer use, and required thread engagement before selecting the screw length. | Too short may not hold securely; too long may bottom out, protrude, or damage the opposite side of the assembly. | Ask: What is the total material thickness, and how much thread engagement is required after assembly? |
The practical distinction is between a button head screw or bolt used on a flat surface and a countersunk fastener used in a prepared recess. A button head sits above the surface, so it can suit sheet metal, brackets, machinery covers, furniture frames and assemblies where a rounded visible head is acceptable or preferred. A countersunk head needs a matching countersink angle and enough material thickness to seat correctly.
Button head fasteners can also differ by drive style. Socket drives allow installation where an external wrench has limited clearance, while cross, Torx-style or other drives may suit higher-speed assembly or specific tooling. The wrong drive choice can cause cam-out, damaged heads or slow installation even when the size and thread are correct.
Start with the joint, not the head name. Confirm whether the fastener will go into a tapped metal hole, a nut, sheet metal, wood-based material or a plastic component. That choice determines the thread form and point style. A machine-thread button head screw is not a substitute for a self-tapping or wood screw unless the mating part is designed for it.
Check head clearance and appearance together. Button heads are rounded and visible, so they work well on covers, guards and finished panels, but they are not flush. If another part slides over the surface, or if a tight clearance envelope exists, a countersunk or low-profile head may fit better. If the head must cover a larger slot or distribute load on a softer panel, ask whether a washer or flange-style head is more suitable.
Choose material and surface finish according to the service environment. Indoor dry assemblies may not need the same corrosion protection as outdoor structures, HVAC brackets or transport equipment. Coatings can change color, friction and compatibility with mating parts, so confirm whether appearance, corrosion resistance or tightening consistency is the priority.
Avoid ordering from only a diameter and length if the application is critical. Include the head style, drive, thread type, material, coating, mating material and intended assembly method. If you already have a drawing, sample or standard reference, provide it with the inquiry so Hebei Wotu Fastener Manufacturing Co., Ltd. can confirm whether the requested button head fastener can be matched or quoted.
| Criteria | Importance | Description | Example Options |
|---|---|---|---|
| Head clearance and surface finish | Critical when the fastener is exposed or another part must pass over the joint. | A button head remains above the surface and gives a rounded visible finish. A countersunk head needs a matching recess but can sit flush; a low-profile head reduces protrusion where clearance is restricted. | Use a button head on a visible cover when protrusion is acceptable; consider a countersunk form for a sliding panel. |
| Drive type and tool access | Important for installation access, tool compatibility and consistent assembly. | The drive should match the tools available at the workstation and the space around the head. Internal socket, cross and Torx-style drives each create different tooling requirements and should not be treated as interchangeable. | An internal socket drive may suit a recessed bracket, while a cross drive may fit an existing powered assembly tool. |
| Thread form and mating material | Essential for reliable engagement and preventing an incorrect substitution. | Machine-thread versions require a compatible tapped hole or nut, while self-tapping or wood-screw forms are selected for different mating materials and hole conditions. Diameter and length alone do not identify the correct thread. | A tapped metal bracket may need a machine thread; a wood-based panel may require a suitable wood-screw thread instead. |
| Material and surface finish | Important when the assembly faces moisture, chemicals, outdoor exposure or appearance requirements. | Select the fastener material and coating for the service environment and compatibility with the mating parts. Finish can affect appearance, corrosion resistance and tightening behavior, so confirm which property has priority. | A dry indoor assembly may have different finish needs from an outdoor bracket or equipment cover. |
Related Options
For a machine cover, furniture frame, bracket or panel where the fastener remains visible, the right button head choice is the one that installs cleanly with available tooling, holds in the mating material and gives the required finish after assembly. Confirm the joint details before choosing a head and drive combination.
Fiberboard screws are selected based on more than screw size alone. For furniture assembly and board-based applications, buyers need to match the screw structure with the characteristics of fiberboard, MDF, and similar engineered wood materials. A suitable specification should consider thread design, head style, screw length, diameter, installation method, and application requirements. For buyers sourcing […]
When sourcing dacromet hex head self drilling screw, a complete RFQ should define the application, screw configuration, coating requirement, dimensions, and supplier confirmation requirements. Buyers often receive different quotations because suppliers may interpret coating, size, drilling capability, or packaging scope differently. Before preparing a project inquiry, buyers can review the available fastener product categories to […]

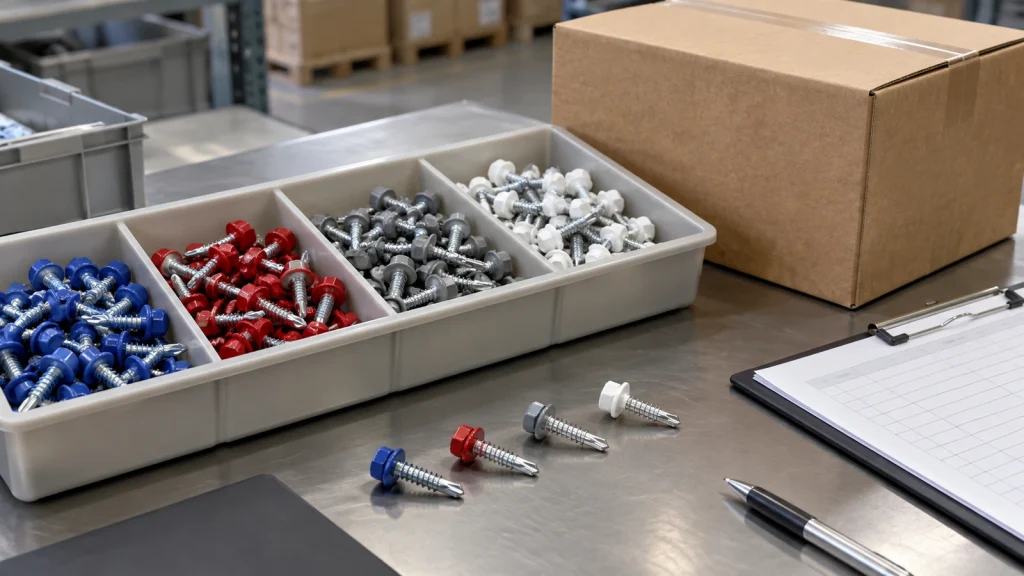

When ordering a chinese standard color nylon head hex self drilling screw, the RFQ should define more than a color name. Buyers should confirm the exact color reference, nylon head or cap configuration, base screw diameter and length, steel-sheet condition, metallic screw finish, visible-face requirement, color approval method, batch-consistency check and packaging or SKU separation. […]
They can be a good fit when the rounded head will remain visible and a flush surface is not required. Check the available clearance, the appearance of the finished joint and whether the head provides enough bearing area for the assembled parts.
Choose a countersunk fastener when another component must pass over the joint or the head must finish flush with the surface. A low-profile option may help in a restricted clearance area, but it can provide less head height or bearing area, so compare the joint design rather than substituting by diameter alone.
No. Button head describes the head shape and does not define the thread form, point style, drive, material or coating. A complete specification must identify the mating material and hole type along with the fastener dimensions and finish.
Match the drive to the available tool access, assembly speed and required control during tightening. A socket drive can suit limited external-wrench clearance, while a cross or Torx-style drive may fit existing production tooling; confirm that the chosen bit or key is available and compatible with the intended fastener.
Provide the diameter and length, head and drive style, thread or point type, mating material, fastener material and surface finish. Also state whether the head remains exposed, how much clearance is available and whether a drawing, sample or photo defines the required fit.
Send the diameter and length, the mating material or hole type, and the required material or surface finish. If appearance or head clearance matters, include a drawing, photo or sample description.
