Group Screw Selection

Group screws are used when an assembly needs a screw and one or more washers to stay together as a single fastener during handling and installation. For production buyers, the main decision is not only the screw size, but also the washer combination, head style, drive, thread type and surface finish that match the joint.

A correctly specified group screw can reduce missed washers, speed up assembly and improve repeatability. A poorly matched combination can still loosen, damage the mating surface or create installation problems even if the nominal screw diameter looks correct.

Request Quote View Products

Related Products

7-letter, 9-letter L-shaped anchor bolt (Chinese national standard GB/T799-1988 embedded anchor screw)

7-letter, 9-letter L-shaped anchor bolt (Chinese national standard GB/T799-1988 embedded anchor screw)

Brand: Wotu Surface: Natural black oxide treatment, customized hot-dip galvanized, zinc plated as required Specifications: Follow Chinese national standard GB/T799-1988, in stock M12-M48, total length 120mm~1500mm, nonstandard customized diameter, bending length, total screw length available Matching: Nuts, flat washers and spring washers of the same specification can be supplied in complete sets. Packaging: Bundling and packaging, using wooden pallets and film-wrapped export packaging in large quantities

Read More
Countersunk Head Blue-White Zinc Plated Self-Drilling Screw (Chinese National Standard: Phillips Countersunk Head Self-Drilling And Self-Tapping Screw GB/T15856.2-2002)

Countersunk Head Blue-White Zinc Plated Self-Drilling Screw (Chinese National Standard: Phillips Countersunk Head Self-Drilling And Self-Tapping Screw GB/T15856.2-2002)

Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: Comply with GB/T15856.2-2002 Chinese national standard, in stock ST4.2/ST4.8/ST5.5 full range of specifications, length 13mm~75mm optional, supports customized nonstandard rod lengths; drilling adaptation plate thickness 0.7~6mm Packaging: 25kg export cartons, full pallets wrapped with film, supports neutral export packaging, customer private-label customization

Read More
Countersunk Head Blue Zinc Self-Drilling Screw

Countersunk Head Blue Zinc Self-Drilling Screw

Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: in stock 3.5/3.9/4.2/4.8/5.5 mainstream wire diameter, rod length 13mm~75mm full size range, nonstandard length can be customized as needed Packaging: 25kg export cartons, full wooden pallets wrapped with film, supports neutral export packaging, private-label customization

Read More
Wafer Head Self-Drilling Screw

Wafer Head Self-Drilling Screw

Brand: Hengzuan Surface: blue and white zinc plated, can be customized color zinc plated, black oxide plated Specifications: Comply with GB/T15856.2 Chinese national standard, in stock ST3.5/ST4.2/ST4.8/ST5.5 mainstream wire diameter, rod length 13mm~50mm full range of specifications, nonstandard length customization on demand, drilling applicable plate thickness 2~5mm Packaging: 25kg export cartons, full pallets wrapped with film, supports neutral export packaging, private-label customization

Read More

Group screw selection by head, thread and washer combination

Selection points

When comparing group screw options, review the complete assembly rather than the screw alone: head shape, drive style, thread form, washer type, finish, material compatibility and packaging method all affect installation quality and purchasing cost.

Criterion What To Check Why It Matters Buyer Tip
Exact screw type in the group Confirm whether the requirement is for self-tapping, self-drilling, machine, wood, fiberboard, roofing, or assembled screws. A grouped screw order can include similar-looking fasteners that work in different base materials and installation methods. Ask: Which material will each screw fasten into, and does it need to drill its own hole or enter a prepared hole?
Head, drive, and installation access Compare head style, recess type, washer use, and available driver clearance in the assembly. The wrong head or drive can slow assembly, damage the surface, or prevent the screw from seating correctly. Ask: Should the screw finish flush, clamp a panel, seal a roof sheet, or remain removable for service?
Thread form and engagement length Match thread pitch, thread diameter, point type, and useful thread length to the substrate and stack thickness. Thread engagement controls holding strength; too little engagement can strip, while an unsuitable point can split wood or fail to start in metal. Ask: What are the thicknesses of all layers being joined, and what pilot hole or drill point is expected?
Surface treatment and working environment Specify the required finish or coating and describe indoor, outdoor, humid, chemical, or roof exposure conditions. Coating choice affects corrosion resistance, appearance, friction during driving, and compatibility with the joined materials. Ask: Is the screw exposed after installation, and are there any coating restrictions for the application?
Packaging and mixed-item control Define whether screws are ordered as one size, a matched set, a kit, or several sizes packed separately. Mixed screw groups can cause assembly errors if lengths, heads, or coatings are hard to distinguish on site. Ask: Should each screw type be labeled by size and application point, or packed together for one assembly step?

What to confirm before ordering group screws

The key distinction is between buying separate screws and washers, and buying a pre-assembled screw group. Separate parts give more flexibility for maintenance or low-volume work. A group screw is usually better for repeated assembly where operators need the washer retained on the screw and the joint design is already fixed.

Washer choice matters as much as the screw. A flat washer spreads load, a spring washer may help resist loosening in some joints, and sealing or bonded washers are used where surface protection or weather resistance is required. The right choice depends on the material being fastened, vibration exposure, hole size and whether the joint needs clamping, sealing or both.

Start with the joint, not the fastener name. Confirm the base materials, hole condition, panel thickness and whether the screw enters metal, wood, plastic or a pre-tapped part. A self-tapping or self-drilling thread may suit one assembly, while a machine screw thread may be the right choice for a nut or threaded insert.

Match the head and drive to the installation method. Pan, hex, countersunk and flange-style heads behave differently under torque and contact pressure. Cross, hex socket, Torx-style or external hex drives also affect tool access, slip risk and production speed. Do not choose a drive only because it is familiar; check whether the operator or automated tool can seat it consistently.

Specify the washer stack clearly. State the washer type, order, outside diameter requirements, and whether the washer must be captive on the screw. One common mistake is approving a screw sample without checking washer clearance in the real hole or recess. Another is changing the washer material or hardness without considering surface marking or clamping behavior.

For an inquiry, prepare the screw diameter and length, thread type, head and drive, washer combination, material or strength requirement, finish, mating materials and sample or drawing if available. If the application involves outdoor use, vibration, roofing, electrical enclosures or furniture assembly, mention that context because it changes the finish, washer and thread selection.

Criteria Importance Description Example Options
Pre-assembled set versus separate screw and washer Important when assembly speed and error reduction matter A pre-assembled group keeps the washer with the screw during handling, while separate parts offer more flexibility for small batches or field repair. A production line may prefer a captive washer screw; a maintenance kit may keep loose washers for mixed repairs.
Washer function Critical because the washer changes load distribution, loosening behavior and sealing performance Flat, spring, bonded or sealing washers serve different purposes. The correct choice depends on the joint surface, vibration, hole size and exposure conditions. A flat washer may spread load on a panel, while a bonded washer may be considered where the joint needs a sealing function.
Thread and point style High impact on installation success and joint strength The thread must match the receiving material and hole condition. A machine thread, self-tapping thread or self-drilling point should not be treated as interchangeable. A pre-tapped insert calls for a different screw style than a sheet metal joint without a prepared thread.
Head and drive style Important for tool access, seating pressure and repeatable torque Head shape affects contact area and finished appearance; drive style affects tool engagement and installation speed. The best option depends on the equipment and available clearance. An external hex head may suit powered installation with open access, while a recessed drive may suit a lower-profile assembly.
Finish and material compatibility Important for corrosion resistance, surface appearance and material interaction Finish selection should reflect the operating environment, mating materials and cosmetic needs. Buyers should confirm coating requirements rather than choosing by appearance alone. An indoor furniture assembly and an outdoor metal panel joint may need different surface finishes and washer materials.

Product Selection

Related Options

For repetitive assembly work, the best-fit group screw is usually the one that keeps the washer in place, seats cleanly with the available tool and provides the required clamping or sealing function without adding unnecessary parts to the line.

Blog Articles / Reviews

How to Specify Countersunk Head Cross Thick Thread Fiberboard Screws for Furniture Assembly Projects

How to Specify Countersunk Head Cross Thick Thread Fiberboard Screws for Furniture Assembly Projects

Fiberboard screws are selected based on more than screw size alone. For furniture assembly and board-based applications, buyers need to match the screw structure with the characteristics of fiberboard, MDF, and similar engineered wood materials. A suitable specification should consider thread design, head style, screw length, diameter, installation method, and application requirements. For buyers sourcing […]

What Should an RFQ Include When Sourcing Dacromet Hex Head Self-Drilling Screw?

What Should an RFQ Include When Sourcing Dacromet Hex Head Self-Drilling Screw?

When sourcing dacromet hex head self drilling screw, a complete RFQ should define the application, screw configuration, coating requirement, dimensions, and supplier confirmation requirements. Buyers often receive different quotations because suppliers may interpret coating, size, drilling capability, or packaging scope differently. Before preparing a project inquiry, buyers can review the available fastener product categories to […]

How Should Buyers Evaluate Self Tapping Screws for Project Procurement?

How Should Buyers Evaluate Self Tapping Screws for Project Procurement?

#4 self tapping screws should not be purchased from the “#4” designation alone. For a usable B2B specification, the buyer still needs the actual screw diameter, thread form or pitch, overall length, substrate, pilot-hole condition, head and drive style, material, surface finish and quantity. This matters because suppliers may use different naming systems. Wotu Fastener’s […]

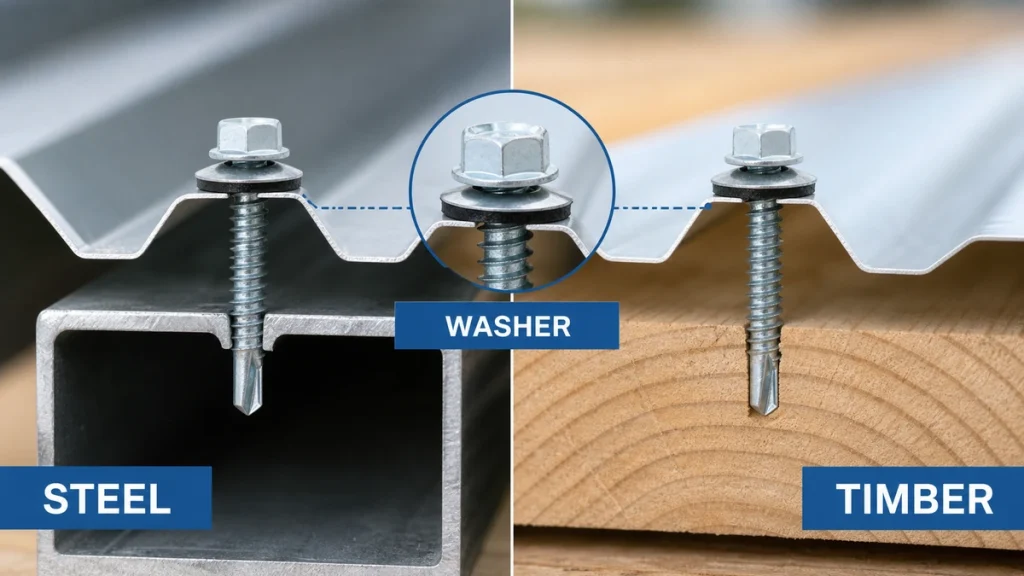

Which Self-Tapping Roofing Screw Specification Fits Metal Panels on Steel or Timber?

Which Self-Tapping Roofing Screw Specification Fits Metal Panels on Steel or Timber?

The correct self-tapping roofing screw depends on the complete panel-and-substrate stack-up. Steel supports typically require a point and thread matched to the support thickness and any pilot-hole requirement; timber supports require a wood-appropriate thread and sufficient embedment. In both cases, buyers must define diameter, length, head, sealing washer, material or coating, environment, pull-out requirements, and […]

Frequently Asked Questions

When is a pre-assembled screw and washer set better than buying the parts separately?

It is usually better for repeated production work where operators must not forget a washer or install it in the wrong order. Separate screws and washers can still make sense for repair work, low-volume builds, or assemblies where the washer choice changes often.

What washer combination should be checked before ordering?

Confirm the washer type, outside diameter, thickness, material, hardness and whether it must stay captive on the screw. The washer has to fit the hole, recess or slot in the real assembly, not only look correct on a drawing.

Is a group screw the same as a SEMS screw?

Many buyers use these terms in a similar way, but terminology can vary by supplier and market. To avoid confusion, describe the complete assembly: screw head, drive, thread, washer type or washer stack, and whether the washer is pre-assembled and retained.

Can the same option be used for metal, wood and plastic assemblies?

Not always. Metal assemblies may need a machine thread, self-tapping thread or self-drilling point depending on the hole condition, while wood and plastic often need different thread geometry to avoid stripping or cracking. The base material and pilot hole condition should drive the choice.

What details should be sent with an inquiry?

Send a drawing or sample if available, plus screw diameter and length, head style, drive, thread type, washer combination, finish and mating materials. Also state whether the joint faces vibration, moisture, outdoor exposure, sealing needs or cosmetic surface requirements.

What common mistake causes assembly problems even when the screw size is correct?

A frequent issue is overlooking washer clearance and seating behavior. A washer that is too large, too hard, too soft or not retained properly can interfere with the recess, mark the surface, reduce clamp consistency or slow the operator during installation.
