Rivet Machine Gun Selection for Fastener Applications

A rivet machine gun is chosen around the rivet you need to set, the material stack you are joining, and the production rhythm on the line or job site. The right tool should pull or form the rivet cleanly without damaging the sheet, enlarging the hole, or slowing the operator after repeated cycles.

For a fastener inquiry, the tool decision is closely linked to rivet type. Blind rivets, solid rivets, structural rivets, and nut rivets do not use the same setting method, so confirm the rivet style before comparing manual, pneumatic, hydraulic, or battery-powered equipment.

Request Quote View Products

Related Products

U-bolt ( / U-bolt, M10/M12/M16/M20/M24 multiple specifications)

U-bolt ( / U-bolt, M10/M12/M16/M20/M24 multiple specifications)

Brand: Wotu Surface: natural black oxide / hot-dip galvanized / blue-white zinc plated, multiple processes available Specifications: Based on common industry drawing parameters, suitable for pipe diameter 25mm~139.7mm, screw diameter M10~M24, total length can be nonstandard customized Matching: can be matched with nut, flat washer and spring washer of the same specifications for complete shipment Packaging: Bundling and packaging + 25kg export carton, full-container wooden pallet wrapped with film, supports private-label export packaging

Read More
7-letter, 9-letter L-shaped anchor bolt (Chinese national standard GB/T799-1988 embedded anchor screw)

7-letter, 9-letter L-shaped anchor bolt (Chinese national standard GB/T799-1988 embedded anchor screw)

Brand: Wotu Surface: Natural black oxide treatment, customized hot-dip galvanized, zinc plated as required Specifications: Follow Chinese national standard GB/T799-1988, in stock M12-M48, total length 120mm~1500mm, nonstandard customized diameter, bending length, total screw length available Matching: Nuts, flat washers and spring washers of the same specification can be supplied in complete sets. Packaging: Bundling and packaging, using wooden pallets and film-wrapped export packaging in large quantities

Read More
Hex thin nut

Hex thin nut

Brand: Wotu Surface: zinc plated Specifications: in stock M8~M64 full standard specifications, covering precision, machinery, and steel structure full size range, supporting nonstandard tooth pitch and customized thickness Matching: Can be matched with bolts of corresponding specifications, flat washer, spring washer complete set of shipment Packing: packed in 25kg cartons and packed on wooden pallets.

Read More
Hex nut (Chinese national standard GB52-1976)

Hex nut (Chinese national standard GB52-1976)

Brand: Wotu Surface: 304 stainless steel Specifications: in stock M6~M24 full standard metric specifications, supports nonstandard pitch, thickening/customized Matching: Can be matched with bolts of corresponding specifications, flat washer, spring washer complete set of supporting shipment Packaging: 25kg cartons, whole wooden pallets

Read More
Hot-Dip Galvanized Chinese National Standard Flat Washer (GB/T97.1A Level Flat Washer)

Hot-Dip Galvanized Chinese National Standard Flat Washer (GB/T97.1A Level Flat Washer)

Brand: Wotu Surface: overall hot-dip zinc plated anti-corrosion treatment, optional blue-white zinc plated, color zinc plated, black oxide Specifications: Execute GB/T97.1-2002 Chinese national standard, in stock M6-M64 full range of specifications, inner diameter, outer diameter, thickness strictly comply with Chinese national standard parameters, support nonstandard size customized Packaging: 25kg woven bag / export carton packaging, full pallets wrapped with film, supports private-label customization

Read More
Grade 8/Grade 10 High-strength Black Oxide Hex Nut (DIN934/GB Chinese National Standard Thickened Nut)

Grade 8/Grade 10 High-strength Black Oxide Hex Nut (DIN934/GB Chinese National Standard Thickened Nut)

Brand: Wotu Surface: quenching and tempering heat treatment + high temperature black oxide anti-rust treatment Specifications: Comply with DIN934, GB/T6170 standards, in stock M6-M48 full range of specifications, nonstandard sizes can be customized Packaging: 25kg carton/woven bag inner packaging, whole wooden pallet wrapped with film for export packaging, supports neutral/private-label customization packaging

Read More

Rivet Gun and Rivet Compatibility Points

Rivet tool selection

When comparing rivet machine gun options, focus on rivet compatibility, setting force, nosepiece availability, access to the joint, operator workload, and maintenance requirements. For production use, also ask how the tool handles mandrel collection, repeatability, and replacement wear parts.

Criterion What To Check Why It Matters Buyer Tip
Rivet type and working size range Confirm whether the tool is intended for solid, blind, or specialty rivets, and ask for the supported diameter and material range. The rivet style determines the required setting force, nose design, and suitability for the joint. Send the exact rivet part number, material, length, and diameter before asking for a model recommendation.
Power source and setting method Verify whether it uses pneumatic, hydraulic, electric, or manual power, and identify the required air pressure or electrical supply if applicable. The available workshop utilities affect installation, portability, operating cost, and consistent setting performance. Ask what supply conditions the tool requires and whether the stated performance depends on a particular setup.
Access to the joint Compare the nose length, throat or reach, clearance around the rivet head, and access from one or both sides of the workpiece. A tool can have suitable force yet fail to reach recessed, narrow, or obstructed joints. Provide a drawing or clear photographs of the joint, including the surrounding clearance.
Control over the setting cycle Ask how the trigger, stroke, force, or cycle completion is controlled and whether the tool suits the required production pace. Repeatable control helps prevent under-setting, over-setting, and unnecessary damage to the workpiece. Describe the joint material and target assembly rate, then ask how operators confirm a completed set.
Nosepieces, wear parts, and maintenance Confirm which nosepieces and replacement parts are included or available for the selected rivet range, and ask about routine servicing. Worn or mismatched tooling can cause poor rivet formation, stoppages, and avoidable downtime. Request a parts list and clarify how quickly replacement nosepieces, jaws, seals, or other wear items can be supplied.

Choosing a Rivet Machine Gun for Your Joint

The practical distinction is between a rivet gun used for occasional installation and a production rivet machine used for repeated, controlled setting. A handheld pneumatic or battery rivet gun suits repair work, assembly benches, and field installation. A bench or automated rivet machine is usually considered when alignment, cycle consistency, and operator fatigue become more important than tool flexibility.

This matters because an oversized or mismatched tool can create bad joints even when the rivet itself is suitable. Pull force, nosepiece fit, access angle, rivet length, and spent-mandrel handling all affect installation quality. If the application uses coated panels, thin sheet, or soft metals, the setting action should be checked against sample parts before committing to a tool and rivet combination.

Start with the rivet, not the tool. Identify the rivet diameter, body material, grip range, head style, and whether it is blind, solid, structural, or threaded. A gun that fits the diameter but cannot deliver the correct setting force may leave loose joints or break mandrels incorrectly.

Match the power source to the work pattern. Manual rivet tools are simple and useful for low-volume maintenance, but they tire the operator on tougher rivets. Pneumatic tools are common for workshop production where compressed air is already available. Battery tools improve mobility, while hydraulic or machine-mounted systems fit heavier or more repetitive assembly tasks.

Check access and handling before purchase. Deep channels, flanges, corners, and curved panels may require a longer nose, swivel head, or special anvil. A common mistake is testing only on open flat sheet and then discovering the tool cannot reach the real joint location.

The next step is to share the rivet type, material thickness stack, base materials, joint position, and expected installation volume. With those details, Hebei Wotu Fastener Manufacturing Co., Ltd. can discuss suitable fastener options and help identify the tool compatibility questions that should be confirmed before ordering.

Criteria Importance Description Example Options
Rivet type and size compatibility Critical The tool must match the rivet's setting method, diameter, body material, grip range, and head arrangement. A blind-rivet tool is not automatically suitable for solid or threaded rivets. A blind rivet with a defined grip range requires a compatible pulling tool and nosepiece; a solid rivet requires a different forming process.
Power source and work volume High Manual, pneumatic, battery-powered, hydraulic, and machine-mounted options trade simplicity, mobility, operator effort, and repeatability differently. Manual equipment may fit occasional repairs, while pneumatic equipment can suit repeated bench assembly where compressed air is available.
Joint access and nosepiece reach Critical for restricted spaces Corners, channels, flanges, and curved panels can prevent a standard head from aligning with the rivet. Check reach, head shape, and clearance at the actual joint. A deep channel may require a longer nose or angled head rather than a standard straight configuration.
Material sensitivity and setting control High for thin, soft, or coated materials The setting action must create a secure joint without crushing the sheet, enlarging the hole, or damaging a surface finish. Thin coated panels should be tested with the intended rivet and tool combination before production use.
Maintenance and spent-mandrel handling Important for repeated use Wear parts, nosepiece changes, cleaning, and collection of spent mandrels affect downtime and operator convenience. Confirm which service items and handling features apply to the intended equipment. A production workstation may benefit from accessible replacement nosepieces and a practical method for collecting spent mandrels.

Product Selection

Related Options

For sheet metal cabinets, vehicle panels, ductwork, enclosures, and light structural assemblies, the priority is a clean, repeatable set without crushing the workpiece. The best fit depends less on the tool name and more on matching the gun, nosepiece, and rivet specification to the actual joint.

Blog Articles / Reviews

What Is a Fastener? Types, Functions and Industrial Uses

What Is a Fastener? Types, Functions and Industrial Uses

A fastener is a hardware component that mechanically joins or secures parts. Common examples include screws, bolts, nuts and rivets; washers are supporting components used in many fastening assemblies. Some connections can be dismantled by removing threaded fasteners, while others, such as riveted joints, normally require the fastener to be destroyed during removal. In industrial […]

Hex Thin Nut vs Standard Hex Nut: Which Fits Space-Limited or Locking Assemblies?

Hex Thin Nut vs Standard Hex Nut: Which Fits Space-Limited or Locking Assemblies?

Direct Answer: Choose a hex thin nut when reduced nut height is genuinely required by the assembly or when the engineering design specifies it as part of a locking arrangement. Choose a standard hex nut when full nut height, normal thread engagement, and the specified load-bearing function are required. Buyers should compare nut height, thread […]

Why Do U Bolts Loosen in Pipe Supports? 6 Causes and Prevention Methods

Why Do U Bolts Loosen in Pipe Supports? 6 Causes and Prevention Methods

U bolts usually loosen in pipe supports because the connection loses clamping force, receives continuous vibration, restricts thermal pipe movement, uses an incorrectly sized U bolt, experiences surface settlement, or suffers from corrosion and inadequate inspection. This issue affects EPC contractors, pipe installers, industrial maintenance teams, equipment manufacturers and fastener distributors working with water, oil […]

Anchor Bolts: 7 Ordering Errors That Cause Site Rework

Anchor Bolts: 7 Ordering Errors That Cause Site Rework

ost anchor bolt ordering errors come from incomplete drawings, unclear dimensions, unsuitable material or coating choices, undefined tolerances, and mismatched nuts or washers. These mistakes affect steel fabricators, EPC contractors, equipment installers, importers, and distributors because anchor bolts are usually embedded before the connected structure arrives on site. Once concrete has cured, even a small […]

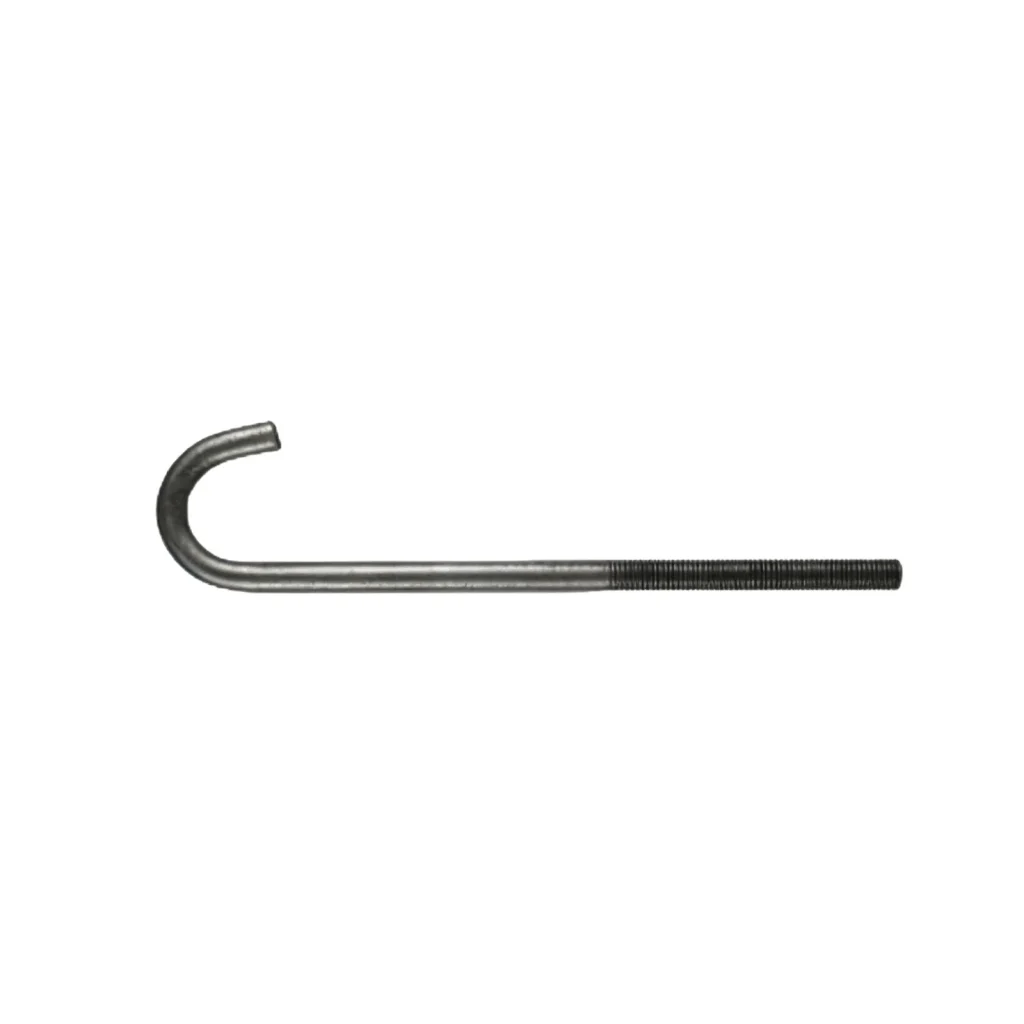

Applications of Anchor Bolts

Applications of Anchor Bolts

Fixed anchor bolts, also known as short anchor bolts, are cast in with the foundation and used to secure equipment that does not experience strong vibration or impact. 1. Fixed anchor bolts, also known as short anchor bolts, are cast in with the foundation and used to secure equipment that does not experience strong vibration […]

Definition of Self-Drilling Screw

Definition of Self-Drilling Screw

A screw is a tool that uses the physical and mathematical principles of inclined planes, circular rotation, and friction to gradually tighten objects and machine parts. A self-drilling screw is a screw with a self-tapping drill bit at its tip. Screws are a common invention of humankind throughout history, and in terms of application, they […]

Frequently Asked Questions

Can the same tool install blind and solid rivets?

Usually not. Blind rivets are installed by pulling a mandrel, while solid rivets are formed from the opposite side with a rivet setter or similar machine, so the rivet type must be confirmed before selecting equipment.

Is this equipment suitable for thin or coated sheet?

It can be suitable if the rivet, grip range, setting force, and nosepiece match the material stack. Test representative samples first, because excessive force or an incorrect rivet length can deform thin sheet, damage coatings, or leave a loose joint.

Does a higher pulling force always make a better tool?

No. The tool needs enough force for the selected rivet, but excessive force can damage the workpiece, break mandrels, or produce inconsistent joints. Compatibility with rivet diameter, material, grip range, and access is more useful than comparing force alone.

Which power source fits occasional work versus repeated assembly?

A manual tool may suit occasional maintenance, while a pneumatic tool can reduce operator effort in a workshop with compressed air. Battery equipment improves mobility, and machine-mounted or hydraulic equipment may be considered for heavier or more repetitive work, subject to the rivet and joint requirements.

What information should be confirmed before ordering?

Provide the rivet type, diameter, body material, grip range, total material thickness, and the base materials being joined. Also describe the installation volume and joint access; a photo or drawing can reveal whether a longer nose, angled head, or special nosepiece is needed.
